    P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display

    Ask Lasest Price
    Brand Name : SILU
    Model Number : P7.8mm
    Certification : CE, CCC, RoHS
    Payment Terms : T/T
    Supply Ability : 1000 m² per Month
    Delivery Time : 20 Days
    Price : USD1080.00-2360.00 per m²
    • Product Details
    • Company Profile

    P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display

    P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display

    7.8125mm pixel pitch, 1,800nits+ brightness, indoor rental applications

    • Silu`s indoor rental LED screen series
    • SMD3535 LED lamps
    • MBI5124 or CH2038s driving ICs
    • 2 Layers 1.6mm Thickness PCB
    • 250mmx250mm Size LED module
    • 500mmx1000mm Size LED cabinet
    • Slim and lightweight support easy and quick seamless assembling
    • 7m~300m better viewing distance (max. viewing according to the video wall size)
    • 140° Horizontal and 140° Vertical wide viewing angles
    • 1920~3840Hz high refresh rate guarantee that no scan line when taking photos and videos
    • High colour uniformity and fidelity offers vivid audio-visual enjoyment

    Silu`s P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display is made of 250mmx250mm modular size, rugged aluminium material 500mmx1000mm size LED cabinet, it is widely used for indoor events rent and large stage background video wall installations.

    From start to finish, the P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display accommodates the fast-paced nature of rental and staging environments and flexible-fixed installations. With the LED displays' modular design, free-standing or hanging applications are possible and can be quickly constructed using the Silu`s Locking bracketry.

    The P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display is compatible with the fast servicing capabilities, easy-to-use bracketry, the individual P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display can be removed and installed at any location in the structure without disrupting the overall layout.

    Our P7.8mm SMD3528 Indoor Rental LED Display Broadcasting Live Video Show LED Screen Display supports any of indoor rental occasions, which surely can be one of the ideal choices for mounting a large stage digital LED display video wall.

    For more details, pls. contact us at saga@atsilu.com or +86-1371700700.

    P7.8mm SMD3528 Indoor Rental LED Display LED Module

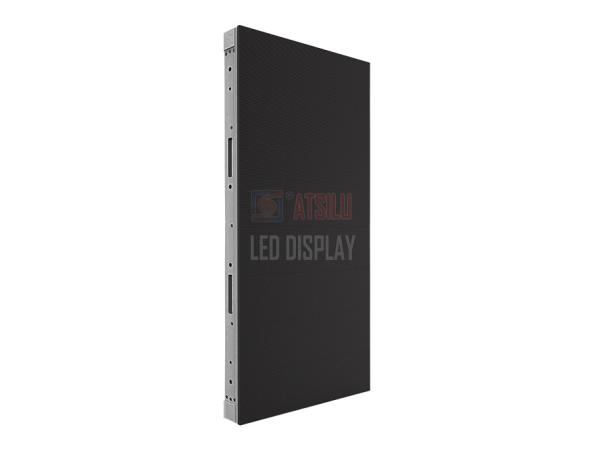

    P7.8mm SMD3528 Indoor Rental LED Display LED Cabinet

    Technical Specification

    P7.8mm Indoor Rental LED Display
    Pixel Pitch7.8125mm (0.3")
    LED BrandNationstar & Customized*
    Pixel Configuration1R1G1B
    Pixel Density16,384 Pixels/m²
    LED ModuleSize: 250mmx250mm (9.84"x9.84")
    Resolution: 32*32 Pixels
    LED Cabinet*Size:500mmx1000mm (19.685"x39.37")
    Resolution: 64x128 pixels
    Material: Aluminum/Steel
    Weight: <16Kg (35.2 Lbs)
    Working VoltageAC220V±10%; AC110V±10%
    Power ConsumptionAverage 360W/m² / Max 960W/m²
    Maximum Brightness>1,800 cd/m²
    Refresh Frequency>1920~3,840Hz/S
    Change Frame Frequency50Hz~60Hz
    Drive Mode1/4 Scanning
    Total Colors281 Trillion Colors
    Grade LevelRGB 65536 Grade
    Best Viewing Distance7m~>100m (21ft~>300ft)
    Best Viewing AngleHorizontally 140° / Vertically 140°
    Screen Lifetime>100,000 hours
    Protection LevelIP43
    Ambient Temperature-40°C ~ 60°C (-30°F~150°F)
    Relative Humidity10%~90%
    Control System*Simple LED Video Control System or Advanced LED Video Processor
    Input SignalRF S-Video RGB RGBHV YUVYC etc.
    Brightness Adjustment*256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit)
    Package Method*Wooden Case / Flight Case
    Warranty Date*3 Years (5 Years for Cree and Nichia)
