SHENZHEN SILU TECHNOLOGY CO., LTD
7 Years
| Ask Lasest Price | |
| Brand Name : | SILU |
| Model Number : | P10mm/P16mm |
| Certification : | CE, CCC, RoHS, UL |
| Payment Terms : | T/T |
| Supply Ability : | 1000 m² per Month |
| Delivery Time : | 25 Days |
| Price : | USD1580.00-3660.00 per m² |
10.0mm, 16.0mm pixel pitch, 6,500nits+ (max.8,500nits) brightness, IP65 rated stadium or rental fixed applications

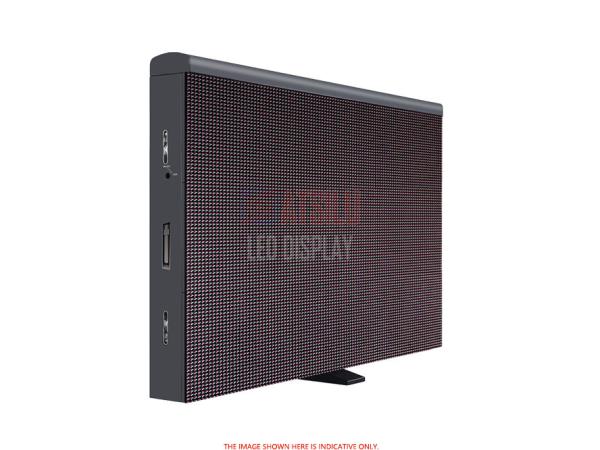

Silu`s DIP346 LEDs High-Quality Stadium Perimeter LED Display
Energy Saving LED Digital Signage is our stadium perimeter LED
display series for high-end users and operators, which is to
install around stadium places to play advertisings and sponsors`
logo images with synchronization control, and special design for
high-end and quality stadium applications, sport competitions, the
major usage is for the logo and brand show of the sport sponsors,
so the spectators can read it clearly from a long distance in their
seats, so high brightness and widely viewing angle can satisfy the
requests. Its LED cabinet can be made by Iron material or aluminium
material according to the customer's request, flight case packaging
can help them to move the led display from one place to another
easily.
Soft covers on the top to protect players, the angle of the LED
display screen could be adjusted easily. These LED cabinets could
also be used for hanging mounting and fixed mounting after removing
the brackets.
The connection between cabinets and brackets is a fold-and-unfold
block and tackle. This is a tight and advanced connection which can
keep all cabinets consistent on one level.
Good performance in colour uniformity, high brightness, low fault
rate and easy for maintaining;
Use the same level of red, green and blue led chips, which makes
the image display of whole led display more excellent and uniform.
Our DIP346 LEDs High-Quality Stadium Perimeter LED Display Energy
Saving LED Digital Signage is manufactured by using the best
quality raw material and advanced production technology, it
features supreme quality and offers the best outputs to ensure the
image and video quality remains seamless.
For more details, pls. contact us at saga@atsilu.com or +86-1371700700.
| P10mm/P16mm Stadium DIP346 LED Display | |
| Pixel Pitch | 10.0mm (0.3937") 16.0mm* |
| LED Brand | Nationstar & Customized* |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 10,000 Pixels/m² |
| LED Module | Size: 160mmx160mm (6.3"x6.3") |
| Resolution: 16*16 Pixels | |
| LED Cabinet* | Size: 960mmx960mm (37.8"x37.8") |
| Resolution: 96x96 pixels | |
| Material: Aluminum or Steel | |
| Weight: <36Kg (79.2 Lbs) or 45Kg (99 Lbs) | |
| Working Voltage | AC220V±10%; AC110V±10% |
| Power Consumption | Average 360W/m² / Max 960W/m² |
| Maximum Brightness | >6,500 (max.8,500) cd/m² |
| Refresh Frequency | >1920~3,840Hz/S |
| Change Frame Frequency | 50Hz~60Hz |
| Drive Mode | 1/4 Scanning |
| Total Colors | 281 Trillion Colors |
| Grade Level | RGB 65536 Grade |
| Best Viewing Distance | 10m~>300m (30ft~>900ft) |
| Best Viewing Angle | Horizontally 120° / Vertically 120° |
| Screen Lifetime | >100,000 hours |
| Protection Level | Front IP65 / Rear IP54 |
| Ambient Temperature | -40°C ~ 60°C (-30°F~150°F) |
| Relative Humidity | 10%~90% |
| Control System* | Simple LED Video Control System or Advanced LED Video Processor |
| Input Signal | RF S-Video RGB RGBHV YUVYC etc. |
| Brightness Adjustment* | 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit) |
| Package Method* | Wooden Case / Flight Case |
| Warranty Date* | 3 Years (5 Years for Cree and Nichia) |
|
|
