| Brand Name : | SILU |
| Model Number : | P16mm |
| Certification : | CE, CCC, RoHS, UL |
| Payment Terms : | T/T |
| Supply Ability : | 1000 m² per Month |
| Delivery Time : | 20 Days |
| Price : | USD1180.00-2360.00 per m² |

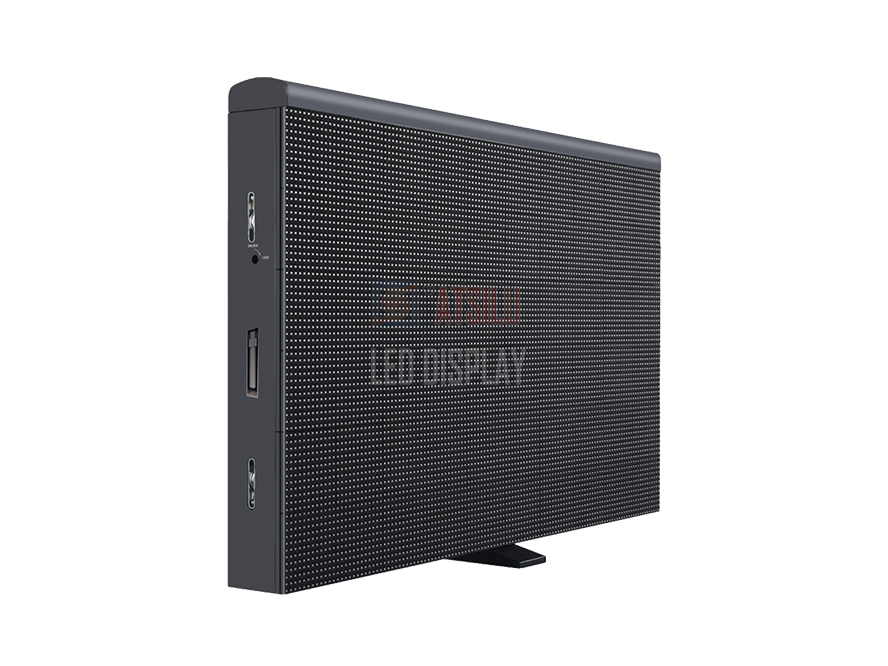

16.0mm pixel pitch, 6,500nits+ (max.10,000 nits) brightness, IP65 rated stadium rental or fixed applications
Silu`s P16mm Stadium Surround LED Display High-Performance Waterproof Digital LED Banner Screen is a kind of big pitch and longer viewing distance type outdoor LED display, that means the pitch between the 2 nearby pixels is 16mm and so the viewing distance at least 16mm when the viewers watch the images or videos on the LED display. Meanwhile, the P16mm Stadium Surround LED Display High-Performance Waterproof Digital LED Banner Screen also can save more time and cost to assemble large outdoor advertising LED billboard video wall.
The P16mm Stadium Surround LED Display High-Performance Waterproof
Digital LED Banner Screen is a line of outdoor stadium LED video
walls available in 16 millimetres pixel pitch for high-brightness
stadium/sport environments.
The outdoor P16mm Stadium Surround LED Display High-Performance
Waterproof Digital LED Banner Screen is to be viewed from a further
distance, which provides exceptional value while delivering a
vivid, bright and consistent image and video quality.
Highly scalable and front serviceable, the P16mm Stadium Surround
LED Display High-Performance Waterproof Digital LED Banner Screens`
efficient design reduces construction and operation costs. Its
highly reliable, the weather-resistant design delivers 24x7
run-time in a wide range of any stadium/sport environments.
The P16mm Stadium Surround LED Display High-Performance Waterproof
Digital LED Banner Screen is widely used in the football field,
basketball court, swimming centre and diving centre.
With IP65 protection waterproof and dustproof grade, the P16mm Stadium Surround LED Display High-Performance Waterproof Digital LED Banner Screen is also a real outdoor LED display product, besides, more than 6,500 nits brightness can make sure the contents on the LED display easily saw clearly.
For more details, pls. contact us at saga@atsilu.com or +86-1371700700.
| P16mm Stadium Perimeter LED Display | |
| Pixel Pitch | 16.0mm (0.63") |
| LED Brand | Nationstar & Customized* |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 3,906 Pixels/m² |
| LED Module | Size: 256mmx256mm (10"x10") |
| Resolution: 16*16 Pixels | |
| LED Cabinet* | Size: 1024mmx1024mm (40.3"x40.3") |
| Resolution: 64x64 pixels | |
| Material: Aluminum or Steel | |
| Weight: <36Kg (79.2 Lbs) or 48Kg (105.6 Lbs) | |
| Working Voltage | AC220V±10%; AC110V±10% |
| Power Consumption | Average 360W/m² / Max 960W/m² |
| Maximum Brightness | >6,500 (max. 10,000) cd/m² |
| Refresh Frequency | >1920Hz/S |
| Change Frame Frequency | 50Hz~60Hz |
| Drive Mode | Static Scanning |
| Total Colors | 281 Trillion Colors |
| Grade Level | RGB 65536 Grade |
| Best Viewing Distance | 16m~>500m (48ft~>1500ft) |
| Best Viewing Angle | Horizontally 160° / Vertically 140° |
| Screen Lifetime | >100,000 hours |
| Protection Level | Front IP65 / Rear IP54 |
| Ambient Temperature | -40°C ~ 60°C (-30°F~150°F) |
| Relative Humidity | 10%~90% |
| Control System* | Simple LED Video Control System or Advanced LED Video Processor |
| Input Signal | RF S-Video RGB RGBHV YUVYC etc. |
| Brightness Adjustment* | 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit) |
| Package Method* | Wooden Case / Flight Case |
| Warranty Date* | 3 Years (5 Years for Cree and Nichia) |
|
|
