SHENZHEN SILU TECHNOLOGY CO., LTD
7 Years
| Ask Lasest Price | |
| Brand Name : | SILU |
| Model Number : | P10mm |
| Certification : | CE, CCC, RoHS, UL* |
| Payment Terms : | T/T |
| Supply Ability : | 1500 m² per Month |
| Delivery Time : | 18 Days |
| Price : | USD880.00-1860.00 per m² |
10.0mm pixel pitch, 6,500nits+ (max.10,000nits) brightness, IP65 rated outdoor fixed applications
Silu`s P10mm Front Maintenance LED Digital Billboard SMD & DIP Fixed Advertising Billboard is combining with the 320mmx160mm or 320mmx320mm sized LED module and the 960mmx960mm sized LED cabinet, which features a wide viewing angle of 140° horizontal and 140° in vertical, so the advertising contents can reach a wide range of viewers from different directions. And the picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for a large digital advertising video wall.
The P10mm Front Maintenance LED Digital Billboard SMD & DIP Fixed Advertising Billboard is designed for front assembling by adopting physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The P10mm Front Maintenance LED Digital Billboard SMD & DIP Fixed Advertising Billboard is manufactured in an IP65 graded waterproof and dustproof design, so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind outdoor advertisements.
For front maintenance LED display, even the installation site has a limited back passageway, we still can remove and replace the led modules from the front side of the led display, that`s very easy and take less time to maintain the led display.
Our P10mm Front Maintenance LED Digital Billboard SMD & DIP Fixed Advertising Billboard is manufactured by using the best quality raw material and advanced production technology, it features supreme quality and offers the best outputs to ensure the image and video quality remains seamless.
For more details, pls. contact us at saga@atsilu.com or +86-1371700700.
| P10mm Outdoor Digital LED Display | |
| Pixel Pitch | 10.0mm (0.3937") |
| LED Brand | Nationstar & Customized* |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 10,000 Pixels/m² |

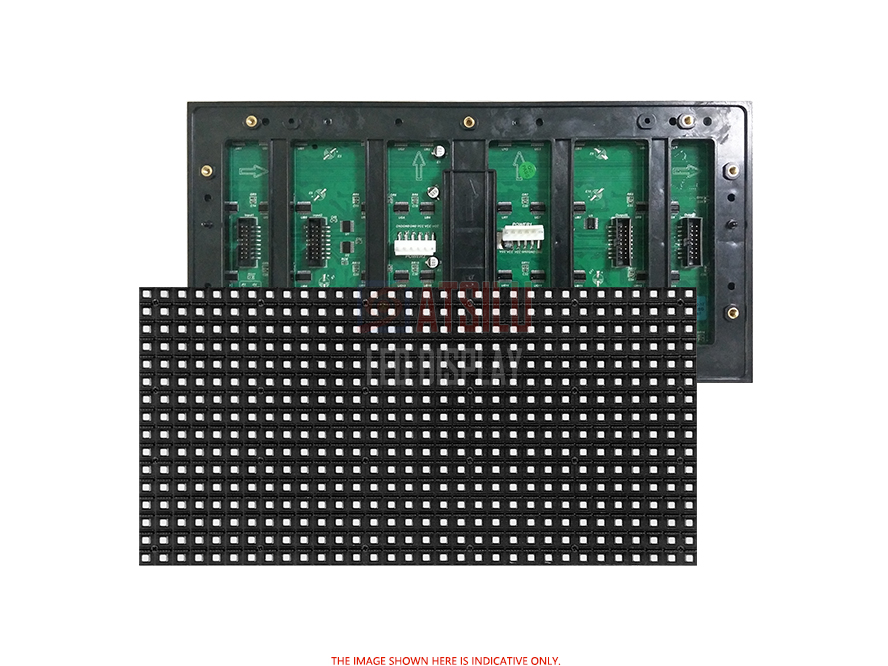

| LED Module | Size: 320mmx320mm (12.6"x12.6") |
| Resolution: 32*32 Pixels | |
| LED Cabinet* | Size: 960mmx960mm (37.8"x37.8") |
| Resolution: 96x96 pixels | |
| Material: Aluminum or Steel | |
| Weight: <36Kg (79.2 Lbs) or 45Kg (99 Lbs) | |
| Working Voltage | AC220V±10%; AC110V±10% |
| Power Consumption | Average 360W/m² / Max 960W/m² |
| Maximum Brightness | >6,500 (max.10,000) cd/m² |
| Refresh Frequency | >1920~3,840Hz/S |
| Change Frame Frequency | 50Hz~60Hz |
| Drive Mode | 1/2 or 1/4 Scanning |
| Total Colors | 281 Trillion Colors |
| Grade Level | RGB 65536 Grade |
| Best Viewing Distance | 10m~>300m (30ft~>900ft) |
| Best Viewing Angle | Horizontally 140° / Vertically 140° |
| Screen Lifetime | >100,000 hours |
| Protection Level | Front IP65 / Rear IP54 |
| Ambient Temperature | -40°C ~ 60°C (-30°F~150°F) |
| Relative Humidity | 10%~90% |
| Control System* | Simple LED Video Control System or Advanced LED Video Processor |
| Input Signal | RF S-Video RGB RGBHV YUVYC etc. |
| Brightness Adjustment* | 256 levels of each colour (RGB) can be adjusted manually and 8 levels of each colour can be adjusted automatically. Optional control system: 256 levels of each colour can be adjusted 100% automatically. (8bit / 16bit / 18bit / 24bit) |
| Package Method* | Wooden Case / Flight Case |
| Warranty Date* | 3 Years (5 Years for Cree and Nichia) |
|
|
